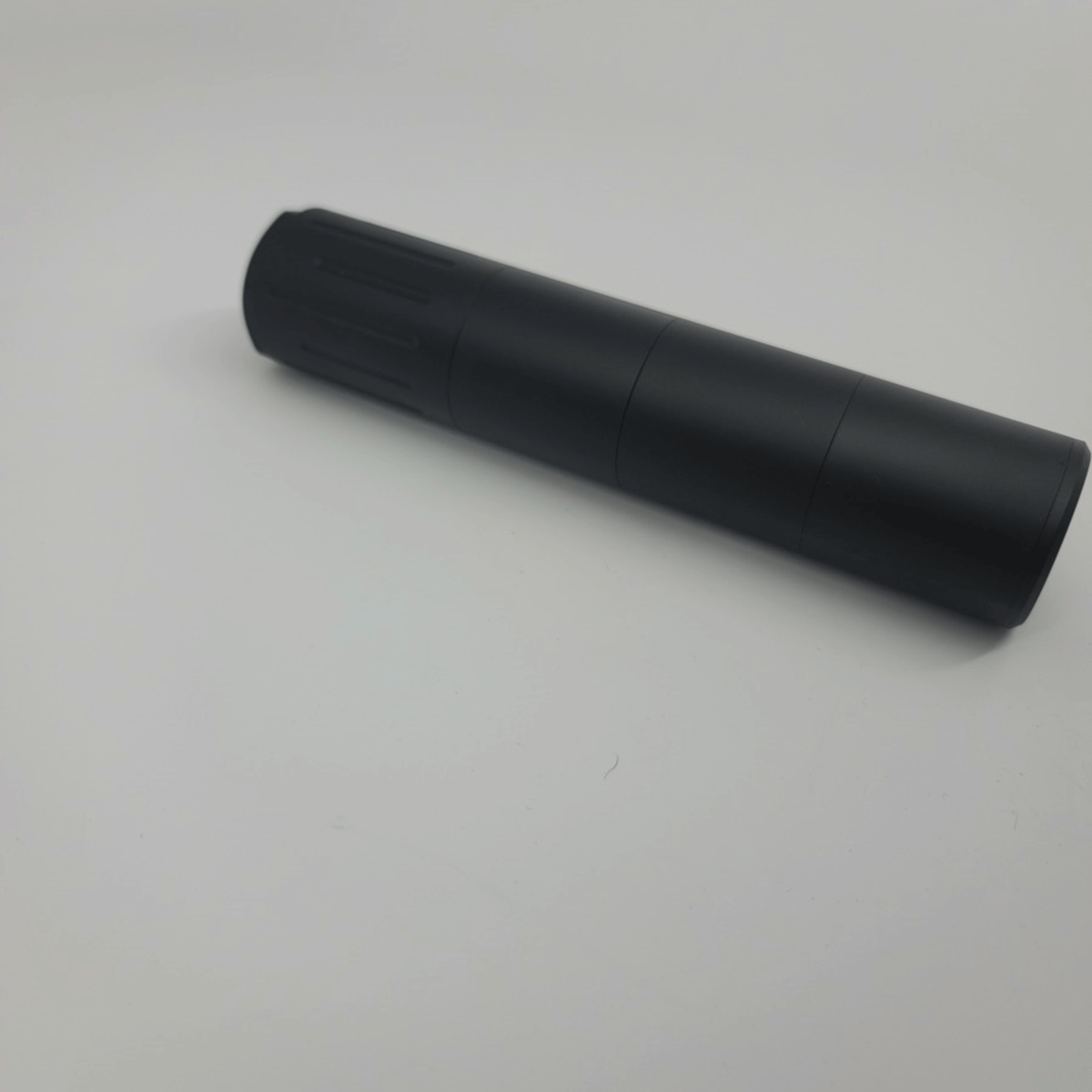

Modular Airgun Silencer or Moderator, MOD40-5/0 pre-assembled with 5x40 mm. modules (Long)
This silencer, or moderator, consists of a start chamber with fixed female 1/2UNFx20, four extra 40 mm long volume chambers an endcap.
All these five chambers are filled with wired metal inserts wrapped with our special Kevlar ® enforced ballistic fibers to minimize the sound.
This system allows you to configure your silencer in length, caliber, volume chamber size, and internal silencer chamber content.
Optionally you can add or remove volume chambers with different lengths, volumes, and internals.
Mixing these variables allows you to influence your silencer's frequency and output decibels and adjust them correctly, matching your rifle.
The benefits of the Huma-Air Modulair Airgun Silencer:
- The possibility of making the silencer rifle specific will allow you to reduce the output noise to an absolute minimum.
- The precision-machined volume chambers are screwed into each other making it very easy to switch or change the setup.
- You can add or remove 40 mm or 20 mm long volume chambers to the design.
- The 40 mm sections' internal parts consist of a metal-wired sleeve with Kevlar (aramid) enforced ballistic fibers around it to reduce the sound.
- You can also use maximum volume without the standard inserts in the volume chambers.
- The system is caliber specific in a combined .177 /.22 version, a .25, and a .30 model. Of course, you can also use a .25/30 model for .22 and .177.
Specifications:
Material: Aircraft Aluminium
Number of 40 mm chambers: Startpiece + 4 extra chambers
Number of 20 mm chambers: 0
Weight: 250 Grams.
Length: 228 mm.
Diameter (Outside): 40 mm.
Tread size: 1/2UNFx20
Finish: Satin black anodized
Thread Size: 1/2UNFx20
